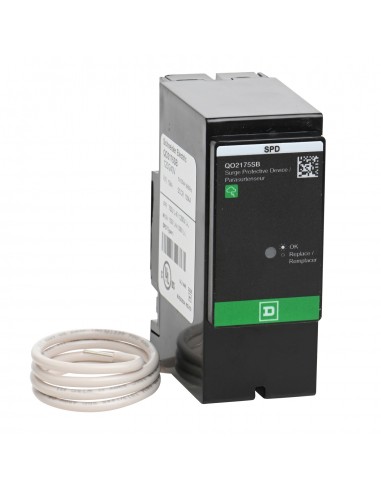

| Product | Módulo de protección contra sobretensiones |
|---|---|
| Range | SW60 QOD |
| Voltage Rating | 120 V CA |
|---|---|
| MCOV | 150 V 300 V |
| SCCR | 22 kA |
| Joule Rating | 900 J |
| Surge Current | 22.5 kA |
| Voltage Protection Rating | 700 V F - N 1500 V L-L |
| Nominal Discharge Current | 5 kA |
| Response Time | < 50 ns |
| Protection Type | Fusible térmico |
| Power Consumption per Phase | 500 mW |
| Number of Phases | 1 fase |
| Wiring Configuration | 3-hilos |
| Local Signalling | 1 LED verde funcionamiento normal |
| destino de producto | load center QO |
