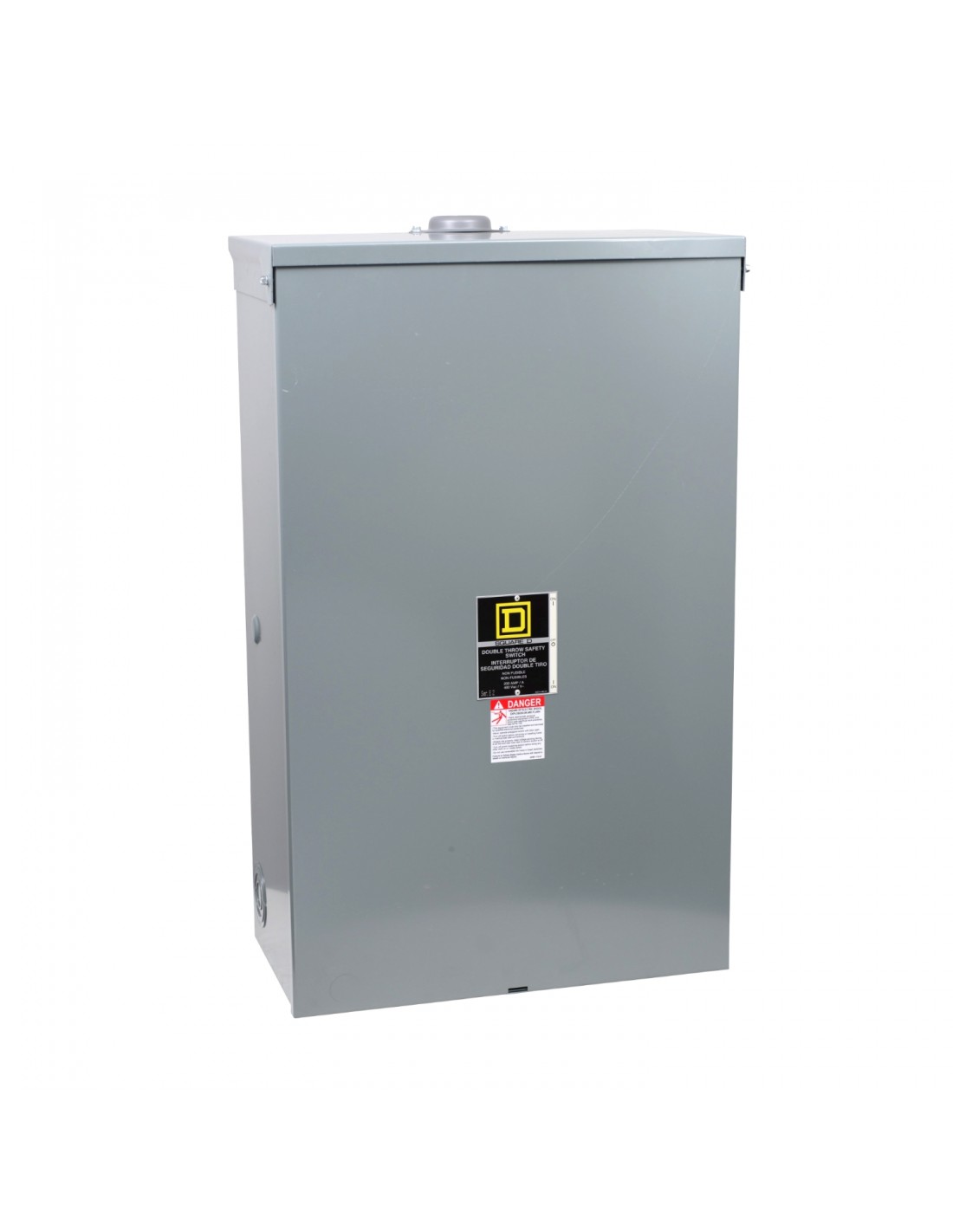

| Product | Cola de milano 1 hacha |
|---|---|
| Duty Rating | General duty |
| Disconnect Type | Non-fusible disconnect ((*)) |
| Factory Installed Neutral | None ((*)) |
| Number of Poles | 3 |
| Current Rating | 200 A |
| Voltage Rating | 480 V CA 250 V DC |
| Enclosure Rating | NEMA 1 |
| poder de corte | 15 hp at 480 V CA 50...60 Hz for 3 fases motors |
| corriente de cortocircuito | 10 kA H or J |
|---|---|
| tipo de fusible | H or J |
| Mounting Type | Superficie |
| Wire Size | AWG 6...300 kcmil cobre o aluminio |
| par de apriete | 38.4 N.m AWG 6...300 kcmil |
| profundidad | 298.45 mm |
| anchura | 606.55 mm |
| altura | 784.35 mm |
| peso del producto | 29.06 kg |
